Cost-Push Inflation – SRAS Leftward Shift

Macroeconomics

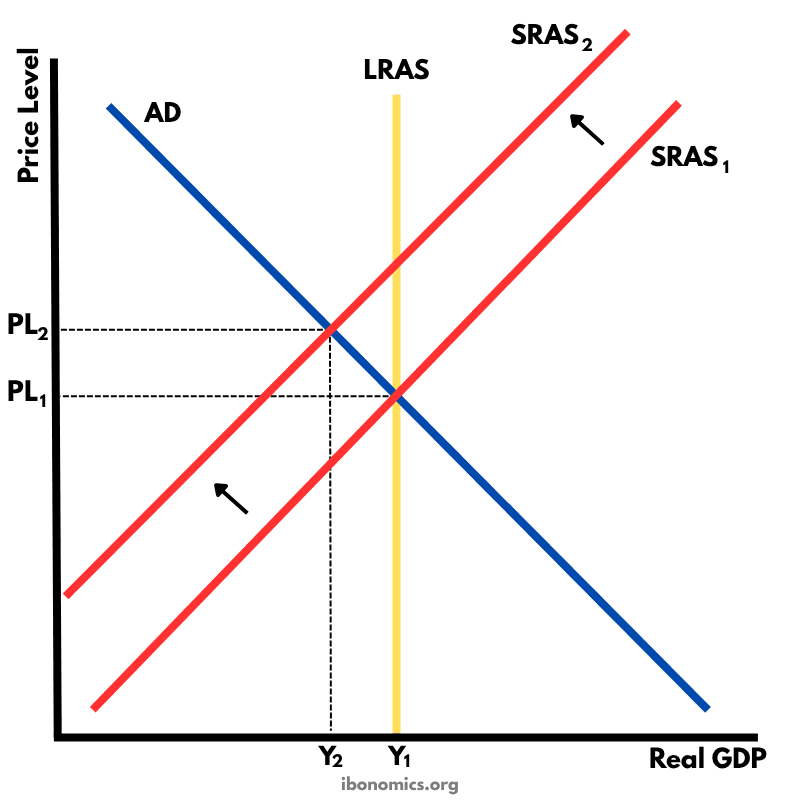

This diagram illustrates cost-push inflation caused by a leftward shift in the short-run aggregate supply (SRAS) curve.

Diagram
Cost-Push Inflation – SRAS Leftward Shift
Curves and Elements

ad

AD: Aggregate demand curve, assumed constant in this case.

sras2

SRAS2: Initial short-run aggregate supply before the cost increase.

sras1

SRAS1: New, lower short-run aggregate supply after the cost increase.

lras

LRAS: Long-run aggregate supply, assumed fixed at full employment output Y1.

y1

Y1: Full employment level of output before the SRAS shift.

y2

Y2: New, lower level of output after the SRAS shift.

pl1

PL1: Original price level before the SRAS shift.

pl2

PL2: New, higher price level after the SRAS shift.

Key Explanations
1

Cost-push inflation occurs when the costs of production increase, causing firms to reduce supply at each price level.

2

This is shown in the diagram by a shift from SRAS2 to SRAS1.

3

The initial equilibrium is at PL1 and Y1, where AD intersects SRAS2.

4

After the shift to SRAS1, the new equilibrium is at a higher price level PL2 and lower output Y2.

5

This scenario leads to stagflation—higher inflation and lower real GDP.

Example Exam Question

Try Our Interactive Quizzes

At Ibonomics we believe in learning by doing. Test your understanding of economic diagrams with our interactive quizzes.
