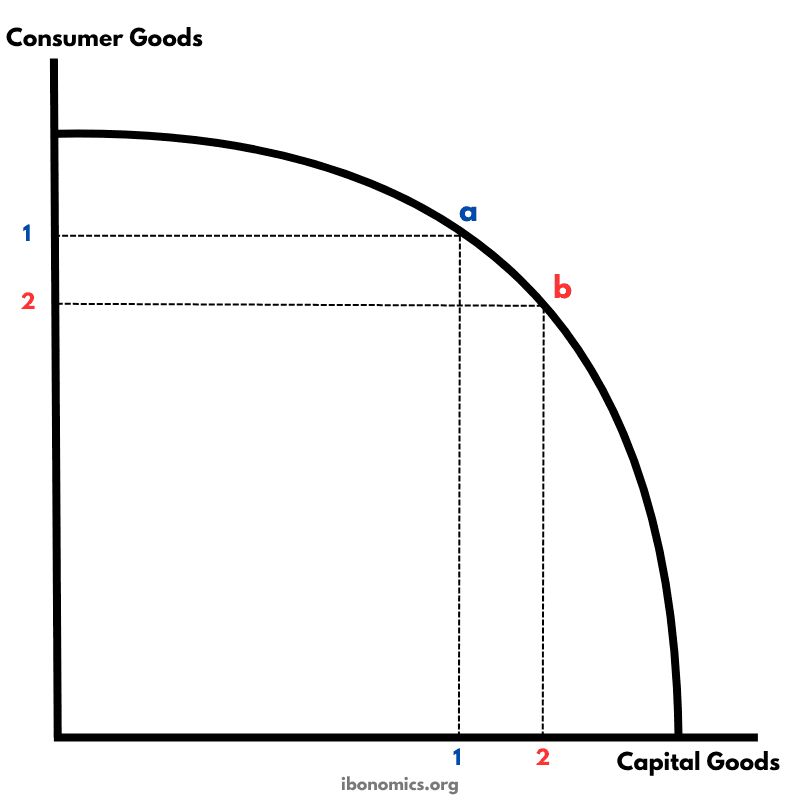

Production Possibilities Curve – Capital vs Consumer Goods
A macroeconomic PPC diagram illustrating the trade-off between producing consumer goods and capital goods, highlighting opportunity cost and future growth implications.
ppc
PPC: The production possibilities curve, showing the maximum attainable combinations of consumer and capital goods.
a
Point a: A production point with more consumer goods and less capital investment.
b
Point b: A production point with more capital goods and fewer consumer goods, favoring future growth.
axis consumer
Consumer Goods: Measured on the vertical axis.
axis capital
Capital Goods: Measured on the horizontal axis.
numbers
Numbers 1 and 2: Used to show the movement from one production point to another and the associated trade-offs.
The PPC (Production Possibilities Curve) shows the maximum combinations of two goods—consumer goods and capital goods—that an economy can produce using its available resources efficiently.
Point a represents a combination with relatively more consumer goods and fewer capital goods.
Point b shows a shift toward greater investment in capital goods, with fewer consumer goods in the short term.
Producing more capital goods (point b) may lead to greater economic growth in the future, as capital goods help expand the economy's productive capacity.
Moving from point a to b illustrates the opportunity cost of producing more capital goods: the loss of consumer goods production.
